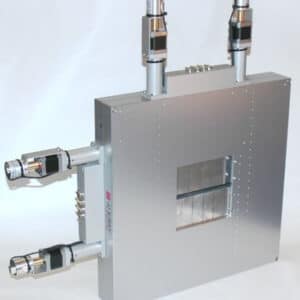

Ultra High Precision Slits
This slit system was designed for a neutron reflectometer where the accuracy and resolution, as well as the parallelism of the slit blades, are crucial. In fact, the accuracy of the collimation provided by the slits can be directly correlated to the resolution of the experiment.
As for the other IB slits, each blade can be moved independently over the full aperture and are all fully overlapping.
The slit blade pair will remain parallel to each other and to the reference frame over the entire range of motion within 50 µrad (10’’), and the accuracy, resolution, and repeatability is < 1 µm over full range.
The slit blades for neutron reflectometers are typicall rectangular cut B4C blocks with a surface roughness Ra ̴ 0.5 µm and a straightness < 2 µm over the full length.
The aperture size can be chosen to match the specific instrument.
Ultra High Precision Slits
Categories:
Technical Specifications
Aperture size
Maximum: 60 mm x 40 mm
Minimum: Full overlap
Resolution
0.2 micron
Accuracy
± 1 micron over full range
Repeatability
0.5 µm
Blade parallelism
50 µrad over full range
Limit switches (end-of-travel)
Included as standard on all motions
Guiding
High precision ball screws
Electrical connections
Limit switches coupled to two motor connectors (SUB-D 15 pins male)
Motors
2-phase stepping motors
Outer surface
Anodized aluminum in color nature
Common options
Blades: Various blade shapes and materials
Motors: Custom high resolution stepping motors, including IMS motors
Encoders: Back-axle rotary encoders and internal linear encoders (absolute or incremental)
Custom connectors
